Roti & Dough

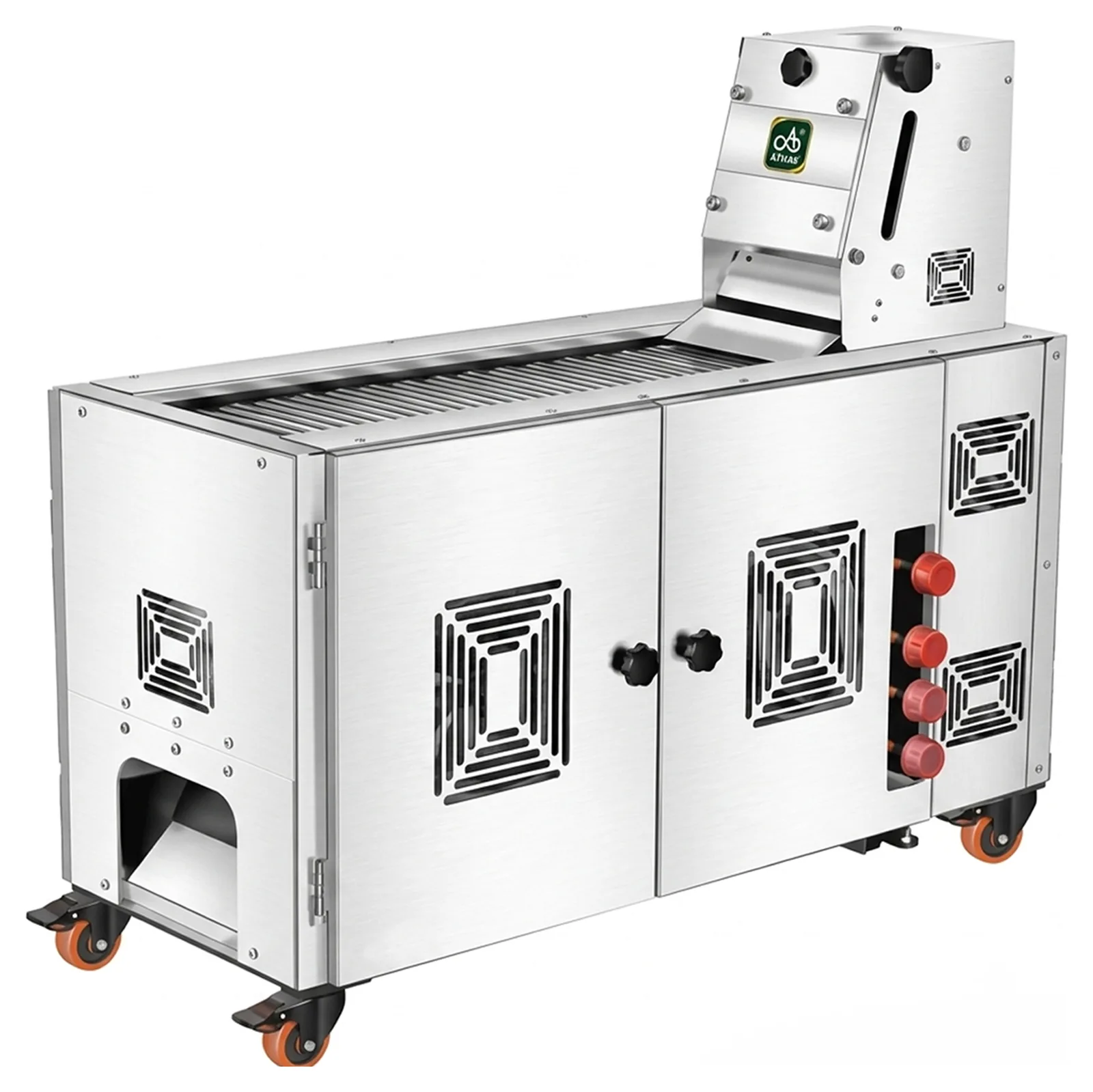

Automatic Roti Making Machine (Pressing + Roasting) – Eco Series
Eco series automatic roti machine pressing and roasting in one pass, in four models rated 300 to 1000 roti per hour.
- Models Available
- 4
- Category
- Roti & Dough
- Applications
- 4
At a Glance
Eco series automatic roti machine pressing and roasting in one pass, in four models rated 300 to 1000 roti per hour. Available in 4 models, from 300 ROTI (PER HOUR) (S300 ECO) to 1000 ROTI (PER HOUR) (S1000 ECO).
- Best suited for
- Caterers, Hotels, Restaurants, Industrial Kitchens, Temples & Community Kitchens
- Available models
- 4 models — S300 ECO, S500 ECO, S700 ECO, S1000 ECO
- Production capacity
- 300 ROTI (PER HOUR) to 1000 ROTI (PER HOUR)
Overview
About the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series
The ATHAK Automatic Roti Making Machine Eco Series presses and roasts roti in a single machine. Four models are listed on page 15 of the catalogue — S300 ECO, S500 ECO, S700 ECO and S1000 ECO — rated at 300, 500, 700 and 1000 ROTI per hour, with listed weights of 82 KG, 190 KG, 225 KG and 350 KG. All four run on 230V single phase, from 2000W on the S300 ECO to 3500W on the S1000 ECO, and all carry an SS304 three-layer conveyor and NBR bearings. Motors run from a 40W impulse motor on the S300 ECO to a 0.5HP V-guard on the S1000 ECO, with burner counts from 3 Nos to 6 Nos and gas consumption from 1-1.25 KG per Hour to 2-2.5 KG per Hour.
Specifications
Available Models & Technical Specifications
Every model of the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series, with specifications as printed in the ATHAK product catalogue.
The Automatic Roti Making Machine (Pressing + Roasting) – Eco Series is available in 4 models:
- S300 ECO
- S500 ECO
- S700 ECO
- S1000 ECO
| Specification | S300 ECO | S500 ECO | S700 ECO | S1000 ECO |
|---|---|---|---|---|
| CAPACITY | 300 ROTI (PER HOUR) | 500 ROTI (PER HOUR) | 700 ROTI (PER HOUR) | 1000 ROTI (PER HOUR) |
| CAPACITY | 2.5*1.5*3 feet | 4*2*4 feet | 5*2*4 feet | 6*3*5 feet |
| WEIGHT | 82 KG | 190 KG | 225 KG | 350 KG |
| PLATE SIZE & TYPE | 5mm*9 inch Ceramic Coating | 5mm*9 inch Ceramic Coating | 5mm*9 inch Ceramic Coating | 14mm*10 inch Ceramic Coating |
| ROTI SIZE & THICKNESS | 2-6 inch & 1-3mm | 2-7 inch & 1-3mm | 2-7 inch & 1-3mm | 2-8 inch & 1-3mm |
| POWER SUPPLY & LOAD | 230V single phase (2000W) | 230V single phase (2400W) | 230V single phase (3000W) | 230V single phase (3500W) |
| POWER CONSUMPTION | 1.5 unit | 2 unit | 2.5 unit | 3 unit |
| MOTOR | 40W impulse motor | 120W impulse motor | 120W impulse motor | 0.5HP V-guard |
| GAS CONSUMPTION | 1-1.25 KG per Hour | 1-1.5 KG per Hour | 1.5-2 KG per Hour | 2-2.5 KG per Hour |
| CONVEYOR | SS304 (3 layer) | SS304 (3 layer) | SS304 (3 layer) | SS304 (3 layer) |
| BURNER | 3 Nos | 4 Nos | 5 Nos | 6 Nos |
| BEARINGS | NBR | NBR | NBR | NBR |
Specification notes
- The catalogue prints two consecutive rows both labelled CAPACITY. The first carries the roti-per-hour rating; the second carries the machine's overall dimensions in feet. Both labels are reproduced exactly as printed.
- POWER CONSUMPTION is printed as a bare "unit" figure (1.5 unit, 2 unit, 2.5 unit, 3 unit); the catalogue does not state the period the unit figure covers.
- BEARINGS is printed as "NBR" for all four models; it is reproduced exactly as printed. This differs from the PRO series table on page 13, which prints "SKF".
- PLATE SIZE & TYPE is printed with a space before "inch" on this page ("5mm*9 inch", "14mm*10 inch") where the page 13 PRO series table prints it closed up ("14mm*10inch"); each is reproduced as printed.
- Model names are printed in upper case on page 15 as "S300 ECO", "S500 ECO", "S700 ECO" and "S1000 ECO" but as "S300 Eco", "S500 Eco", "S700 Eco" and "S1000 Eco" in the page 3 index; the page 15 spelling is used here.
- The page 15 heading is printed as "Automatic Roti Making Machine (Pressing + Roasting )" with a space before the closing bracket.
- The Eco Series qualifier is taken from the page 3 index, which groups these four models under "* Roti Making Machine Eco Series (Regular)"; page 15 itself does not repeat that section heading.
Applications
What It's Used For
- Automatic roti and chapati making with pressing and roasting in one pass
- Continuous roti production from dough balls to roasted roti
- Daily roti output for restaurant and canteen service
- Roti production lines running on gas burners
Industries Served
Who Uses This Machine
Features
Key Features
- Four models listed: S300 ECO, S500 ECO, S700 ECO and S1000 ECO
- Rated capacities of 300, 500, 700 and 1000 ROTI per hour
- Pressing and roasting in one machine, over an SS304 three-layer conveyor
- All four models run on 230V single phase, from 2000W to 3500W
- Burner counts of 3, 4, 5 and 6 Nos, with gas consumption from 1-1.25 to 2-2.5 KG per Hour
- Motors from a 40W impulse motor to a 0.5HP V-guard
- Listed weights from 82 KG to 350 KG
Related Machinery
You May Also Need
Automatic Roti Making Machine (Pressing + Roasting) – PRO Series
Automatic roti machine pressing and roasting in one pass, in four PRO models rated 500, 700, 1000 and 2000 roti per hour.
Automatic Roti Pressing Machine – Eco Series
Compact automatic roti press in two Eco models, CP 300 Eco and CP 500 Eco, rated 300 and 500 roti per hour.
Automatic Press Machine CP-1000 Pro
Automatic roti press rated 1000 ROTI per hour, with a 14mm*10inch ceramic coated plate and 120W impulse motor.
Drum Type Dough Kneading Machine
Enclosed drum kneader for dust-free, uniform dough, in five models from 7 KG to 50 KG batch size.
Dough Ball Cutting Machine (Electric)
Electric dough ball cutter portioning 1000-2500 pieces per hour at 20g to 50g ball size, on a 0.5 HP motor.
FAQ
Automatic Roti Making Machine (Pressing + Roasting) – Eco Series Questions
How many models of the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series are available?
The Automatic Roti Making Machine (Pressing + Roasting) – Eco Series is available in 4 models: S300 ECO, S500 ECO, S700 ECO, S1000 ECO. Full specifications for each model are listed on this page.
What is the production capacity of the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series?
Rated capacity varies by model, as printed in the ATHAK product catalogue: 300 ROTI (PER HOUR), 2.5*1.5*3 feet, 500 ROTI (PER HOUR), 4*2*4 feet, 700 ROTI (PER HOUR), 5*2*4 feet, 1000 ROTI (PER HOUR), 6*3*5 feet.
What motor power is available on the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series?
Motor power across the available models, as printed in the ATHAK product catalogue: 230V single phase (2000W), 1.5 unit, 40W impulse motor, 230V single phase (2400W), 2 unit, 120W impulse motor, 230V single phase (3000W), 2.5 unit, 230V single phase (3500W), 3 unit, 0.5HP V-guard.
Which Automatic Roti Making Machine (Pressing + Roasting) – Eco Series model is right for my requirement?
Share your production volume and requirement when you request a quote. ATHAK will confirm which model fits and what is possible for your specific case.
How do I get a price quote for the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series?
Share the model you need — or your production requirement — through the quote request form, by phone, or on WhatsApp, and ATHAK will respond with pricing for the right model.
Get a Quote for the Automatic Roti Making Machine (Pressing + Roasting) – Eco Series
Share your requirement and ATHAK will confirm the right model and pricing.
